PLC control automatic GRX-800 transformer coil winding machine for high voltage coil

FOB Reference Price:Get Latest Price
$13,800.00 - $17,500.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
GRX-800 automatic transformer coil winding machine
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
More than 5 years
After-sales Service Provided:
Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support, Free spare parts
Place of Origin:
Shandong, China
Brand Name:
Darling Machinery
CNC or Not:
CNC
Condition:
New
Dimension(L*W*H):
5800x2700x1600mm
Applicable Industries:
Manufacturing Plant, transformer
Weight (KG):
1900
Motor Power (kw):
5.5
Center Height (mm):
850
Coil Type:
round and oval, rectangular
Max.Transformer Capacity(kVA):
1600
Max. Load (KG):
1000
Wire Diameter Range (mm):
0.3-8mm
Length of Axis (mm):
1250
Product name:
automatic transformer coil winding machine
Function:
Transformer coil winding
Control method:
PLC+CNC control
Loading weight:
1000kg for automatic transformer coil winding machine
Winding speed:
450r/min for automatic transformer coil winding machine
Winding precision:
0.01mm for automatic transformer coil winding machine
Motor power:
4KW for automatic transformer coil winding machine
Voltage:
380v/50HZ(as Customers' Request )
Certification:
ISO9001:2008 and CE
Delivery time:
30 days for automatic transformer coil winding machine
Supply Ability
Supply Ability:
1800 Set/Sets per Year automatic transformer coil winding machine
Packaging & Delivery
Packaging Details
1, machine spares and accessories are packaged into fumigation-free wood box.
2, main body is packaged in water-proof film for anti-rust in shipment.
3, if there is special requirement, all body can be packaged into fumigation-free wooden box. or make wooden pallet.
4, if there is requirement, we can go to client factory supplying installing adjusting and training work for our PLC control automatic GRX-800 transformer coil winding machine for high voltage coil
Port
Qingdao port for automatic transformer coil winding machine
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

PLC control automatic GRX-800 transformer coil winding machine  for high voltage coil

Watching machine working video directly (Video link):

YouTube: https://www.youtube.com/watch?v=brNyM_VU6Yg

Youku: http://v.youku.com/v_show/id_XMTU3NDI2MTc2OA==.html

Alibaba: http://cloud.video.taobao.com/play/u/2894525063/e/1/t/1/p/1/40097458.swf

PLC control automatic GRX-800 transformer coil winding machine  for high voltage coil

main technology index

No.

Item name

Parameter

1

Product type

GRX-800

2

Max bearing weight(kg)

≤1000

3

Main axis speed(r/min)

0~570

4

Main axis center height(mm)

850

5

Winding axis center distance(mm)

500~1250

6

Motor power(kW)

4

7

Rectangle coil diagonal length(mm)

≤800

8

Working voltage AC (V)

380±10%, 3 phase, 50HZ

9

Air pressure(bar)

5-6.5

10

Using range

Outer dia.≤600mm,inner dia.≥80mm

11

Max setting winding number of counting

99999.9

12

Round wire or sheet wire, enamel covered wire

or paper-covered wire

2 sheet wire≤3×12mm

Enamel covered wire 0.3mm-3mm

13

Whole machine power(kw)

About 5

14

Automatic winding function

Min. diameter of modifying wire 0.01mm

15

Stepping winding range(mm)

0.1~5

16

Stepping precision(mm)

0.01

main component and manufacture

Item

Manufacture

transformer

Mitsubishi of Japan

Can programming controller PLC

Mitsubishi of Japan

Human-computer interface (liquid touch screen)

Mitsubishi of Japan

RS-485 communication mould

Mitsubishi of Japan

RS-485 communication wire

Mitsubishi of Japan

RS-422 communication wire

Mitsubishi of Japan

Photonics coder

Shanghai

Electromagnetism braking 3 phase synchronization motor

Wannan

Foot-touch switch

Taiwan

AC contactor

DELIXI or Schneider

Our service

1, before sales: we will give you professional instruction and help you to buy the suitable machine, after you choose our  machine, let you take the biggest profit through using our  machine.

2, in sales: we will give you feedback informations about your order through photos and video. let you put your heart into stomach.

3, after sales: we will go to your factory to give you a training and teach you how to use our machine, or we will give you a video training. if there is our local agent and office, we will let our local engineer to your factory and give you a training.

4, our quality assurance: all our  machine using life.

Getting Local office support, please contact with our company:

Shandong Darling Machinery Equipment Co., Ltd.
Add: Shacun Industry Park, Licheng District, Jinan City, China.
Contact person: Martin Hoo +86-15253156158 (WhatsApp)
Skype/Wechat: martinhoo936 QQ: 613252158
Website: www.darlingmachinery.com

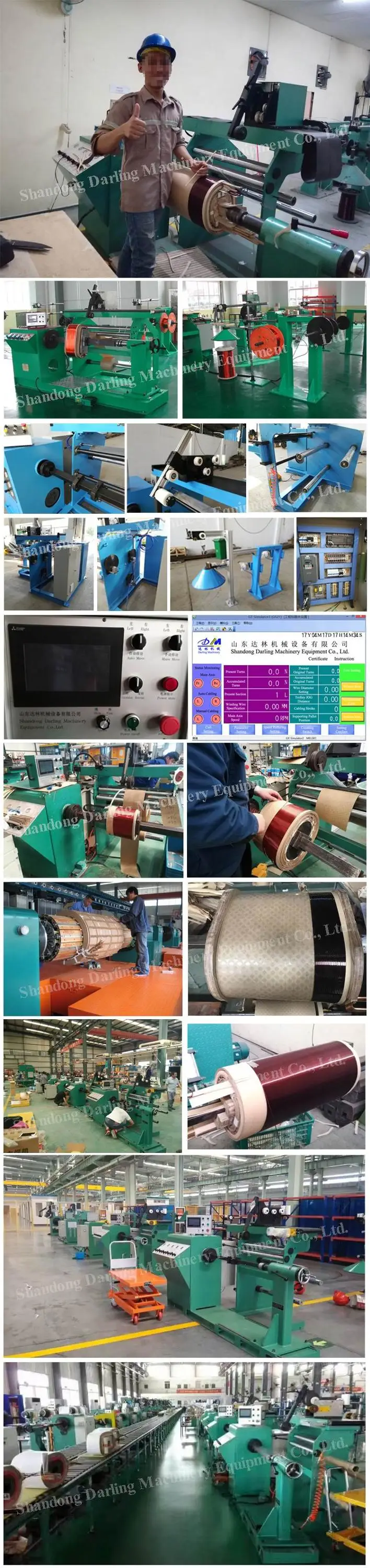

PLC control automatic GRX-800 transformer coil winding machine  for high voltage coil

PLC control automatic GRX-800 transformer coil winding machine  for high voltage coil

PLC control automatic GRX-800 transformer coil winding machine  for high voltage coil

PLC control automatic GRX-800 transformer coil winding machine  for high voltage coil

FAQ:

1, are you manufacture or trading company?

we are manufacture more than 15 years, 3 branch factory, more than 10000 square meters.

2, how about your quality ?

we only sell high quality machine, we use the world famous brand component, like SIEMENS, MITSUBISHI, DELEM, PANASONIC, SCHNEIDER, ABB, etc. so there is no worry about our quality.

3, what about your after sales service ?

we go to your factory for site training or you can get local branch company traning, if there is no requirement, we can give you video training in other methods.

4, why  do we must choose you as our supplier ?

customer real voice is your best reference, 5 stars customer feedback reviews, 100% high praise. those voice can let  you to cooperate with us safely.
